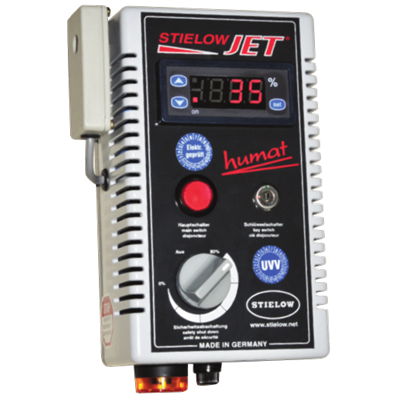

STIELOW JET-Humat combines digital control with timeless design for simple operation and considerable energy-saving potential.
STIELOW JET-Humat is equipped with a programmable humidity module as a hygrostat and an automatic circuit breaker. The automatic circuit breaker protects the controller with 2.5 A.
The appliance is equipped with a main controller and a safety circuit, for which a second but analogue hygrostat is used, which is activated in the event that the digital main controller fails. The digital main controller has priority in control mode; the analogue controller only replaces it if it fails. This operating status is signalled with a visual and loud audible signal and must be deactivated by the user. A control highlight that ideally combines digital and analogue switching and therefore offers the customer the convenience of digital control with the additional safety of proven analogue control.
The device has a self-diagnosis function that is automatically activated each time it is commissioned, and the humidity sensor and cables are continuously checked. Any faults are displayed digitally so that time-consuming troubleshooting, e.g. on the humidity module or humidity sensor, is no longer necessary.
The complex key circuit prevents unauthorised programming. In the red position, the controller is locked; in the green position, access mode is enabled for other users. As a special feature, the key can be removed at any time in both positions.
STIELOW JET-Humat has a response time of less than 1 second, making it one of the fastest humidity controllers in the world. This means that the connected STIELOW humidifier can react perfectly to changes in humidity at an early stage.
The humidity controller is connected between the socket and the humidifier and can be operated as a perfect accessory for any existing humidifier with alternating current.
As part of a STIELOW JET air humidification system, the controller can be firmly clamped in the switch cabinet.
