Stielow

Advantage and technology made in Germany

Dehumidifier - AIRDRY© 4D So · 3D So · 3-2D So

Special construction for sewer and manhole drying

STIELOW JET-luftbefeuchter

Brochure as PDF file retrieval

Logo Airdry
33-55 litre class | 400 - 700 cbm room volume

Service providers, construction companies, equipment rental companies, commercial and private customers have been utilising the benefits of AIRDRY© dehumidifiers for many years. Whether as a stand-alone unit or for "fleet use": AIRDRY© units last longer than others and impress with their extreme value in daily use. Accidental damage is almost unheard of, so that the devices remain operational even after long periods of use.

Their robustness and favourable power consumption combined with simple handling and complete standard equipment make them superior. Special requests can be catered for as extras.

Trust the original, don't make any compromises if your priority is to be able to dry reliably and permanently.

Standard equipment:
  • Large water tank
  • Water level indicator light
  • Automatic appliance switch-off when the water tank is full
  • 1/2" threaded drain connection for permanent water drainage
  • Industrial swivel castors
  • Handle scales on both sides
  • State-of-the-art refrigerant
  • Axial fan stepless
  • alu-frame-tec
  • Hot gas defrosting
  • Fully automatic operation
  • Operating hours counter
Extras:
  • Electricity consumption meter
  • V2A housing
  • Crane hook attached
  • Wall bracket
  • Armstrong" sound-absorbing version
  • Aggregate sealing
  • Power connection cable up to 30 m
  • External humidity controller
  • Dew point controller internal/external
  • Separate frost monitor
  • Special paint finish according to RAL
  • Special paint finish on request
  • Tropical version (over 30 °C)
  • Condensate water pump 1,5 - 6,0 m Funding level
  • Built-in fault indicator Data bus Remote monitoring
  • Protection class IP 54

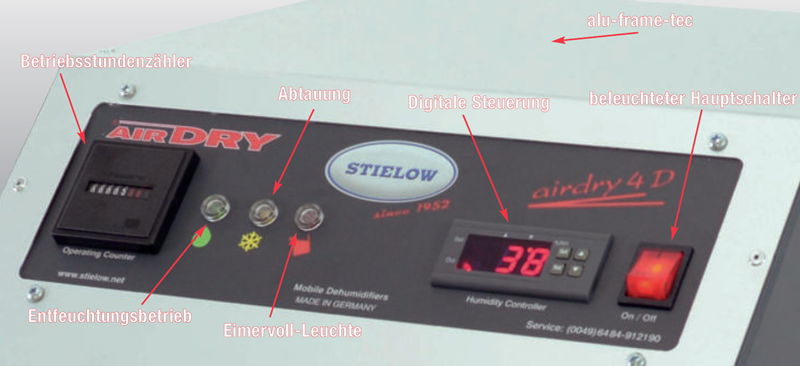

DIGITAL CONTROL – Illuminated display, 4 buttons for easy programming, display correction individually selectable, hysteresis (humidity deviation) adjustable, response time of less than 1 second, self-diagnosis every second, visual error messages on the display, pre-programmed, self-calibrating, green dehumidification indicator light, orange defrost indicator light, red warning light, water tank filled to maximum, illuminated main switch, automatic hot gas defrosting system

Airdry 4d-3d-sonderbau Display
Technical parameters
AIRDRY 4 D So 3 D So 3-2 D So
Max. Water withdrawal / l 33,1 47,5 55,1
at +30°C / 70% r.F. / l 21,5 30,1 39,0
at +20°C / 70% r.F. / l 12,2 18,7 29,5
at + 8°C / 70% r.F. / l 6,1 6,7 11,5
Compressor PS / kW 0,25 / 0,18 0,33 / 0,24 0,45 / 0,35
Voltage V/Hz 230/50 230/50 230/50
Power consumption / h 330 Watt 420 Watt 550
Cooling capacity kcal h 850 1100 1950
Cooling capacity cbm / h 500 650 950
Additional fans Air output cbm/h: 800 Air output cbm/h: 800 Air output cbm/h: 800
Water tank 10 Liter 10 Liter 10 Liter
Work area °C *-10 bis 40 *-10 bis 40 *-10 bis 40
Dimensions: Height/depth/width 538 / 626 / 380 mm 538 / 626 / 380 mm 538 / 626 / 380 mm
Net weight kg 30,2 31,3 32,5
*separate heating of bath and drain required
