in trade, museums, the food sector, industry, electronics manufacturing, pharmaceutical production, tobacco storage, food counters, everywhere in the flower, fruit and vegetable sector, as well as many other applications.
The extremely compact and mobile design is ideal wherever humidification is required in confined spaces. The hourly output of the two devices is between 5 and 10 litres per hour in automatic mode.
For continuous operation of the devices, we refer to the compatibility with the STIELOW reverse osmosis DINO TROL 40 and the hygiene prophylaxis OXIULTRA 27 in order to fulfil the requirements of DIN 6022. The system has a 110 mm outlet and can therefore be connected to a HT pipe system or the moisture produced can be blown directly into the room via a short route.

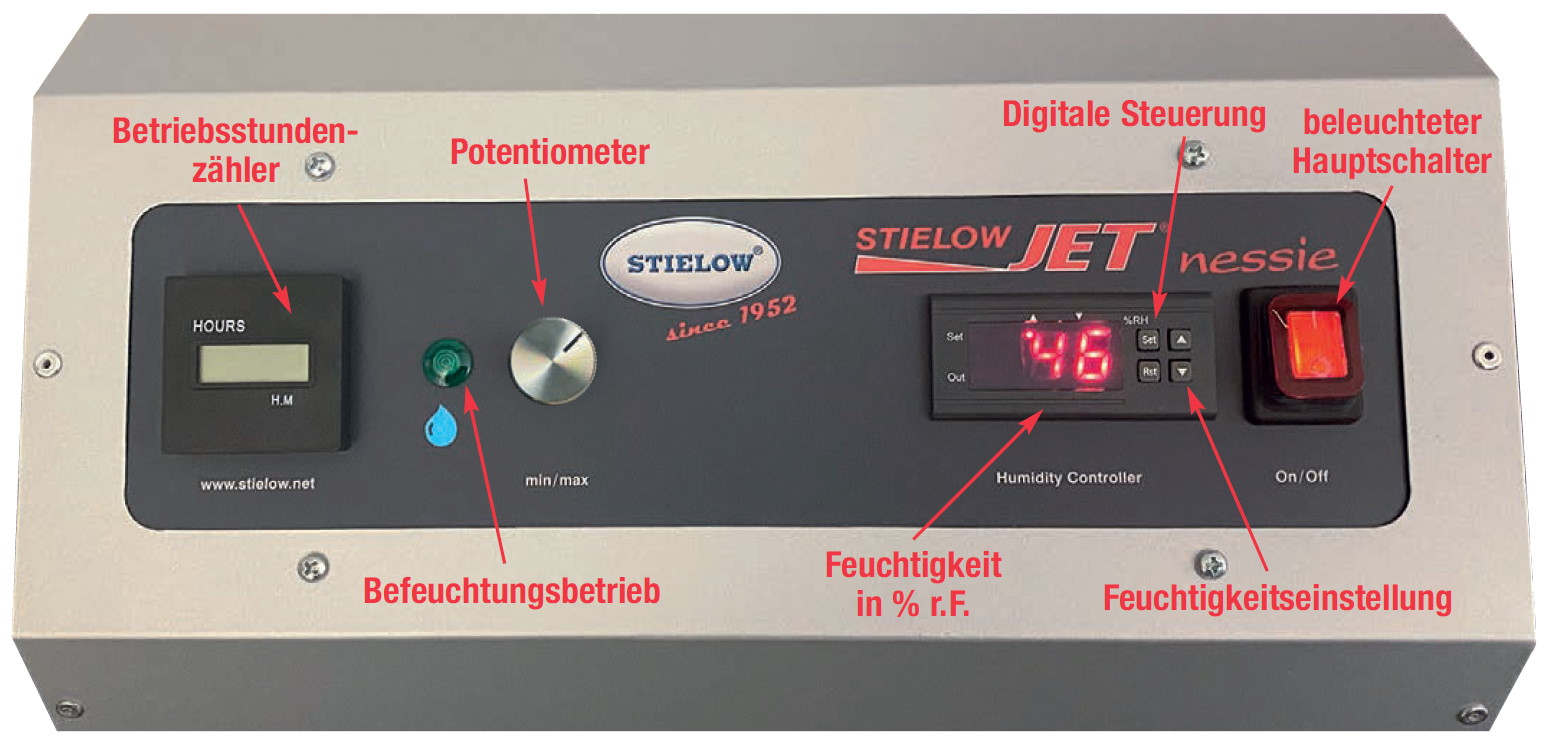

The STIELOW-JET nessie 510 appliances have a humidity sensor that can be attached to the measuring point using the existing cable connection. Once connected to the water supply, it runs fully automatically and is therefore suitable for continuous operation. The desired humidity can be easily set and the operating status can be read on the display at any time. The device can be moved so that an optimum operating location can be selected.
| nessie | 510.5 | 510.10 |
|---|---|---|
| Voltage V/Hz | 230/50 | 230/50 |
| Power consumption Watt/h | 400 | 800 |
| Moisture performance l/h | 5 | 10 |
| Function | Vollautomat | |
| Moisture outlet diameter | 110 mm Doppelauslass | |
| Moisture outlet nozzle Dimensions (height x width x depth) mm |
400 + 100 430 800 |
400 + 100 430 800 |
| Weight kg | 25,0 | 30,0 |
The humidifier operates at a temperature of 5 to 40° C and at a relative humidity of 10 - 99 % RH.
