Stielow

Advantage and technology made in Germany

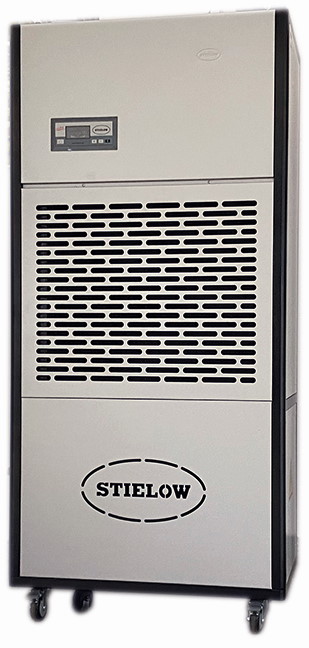

AIRDRY© 170 T · 250 T · 350 T · 750 T

Industrial dehumidifier 170 - 750 litre class

Luftentfeuchter AIRDRY<sup>©</sup> mini

Brochure as PDF file retrieval | Order directly in the Shop

Logo STIELOW JET-Nessie
Standard equipment
  • Threaded drain connection 3/4" for permanent water drainage
  • Mobile undercarriage Lockable swivel castors
  • State-of-the-art refrigerant
  • Centrifugal fan, variable speed, 1 or 2 pieces
  • frame-tec-composite
  • Hot gas defrosting
  • Fully automatic operation
  • Extra insulation for silent running
  • Temperature display °C
  • Display for phase rotation direction
Extras
  • Electricity consumption meter
  • V2A-Housing
  • Crane hook attached
  • Air duct connections
  • Armstrong" sound-absorbing version
  • Aggregate sealing
  • Power connection cable up to 30m
  • External humidity controller
  • Dew point controller internal/external
  • Separate frost monitor
  • Special paint finish according to RAL
  • Special paint finish on request
  • Floating output
  • Protection class IP 54
Low power consumption with maximum water extraction!
30 % Energy saving !

DIGITAL CONTROL – Illuminated display, 4 buttons for easy programming, individually selectable display correction, response time of less than 1 second, self-diagnosis every second, visual error messages on the display, pre-programmed, self-calibrating, dehumidification mode, automatic hot gas defrosting, infinitely variable radial fan - fully galvanised, intake-side ventilation grille with dust filter mat, reusable, mobile undercarriage with lockable castors, hose connection option for continuous water drainage, 400V 3N ~ 50/60 Hz connection plug

Airdry beleuchtetes Display

Service providers, construction companies, equipment rental companies, commercial and private customers have been realising the benefits of AIRDRY©-dehumidifiers. Whether as a stand-alone device or for "fleet use": AIRDRY©-appliances last longer than others and are characterised by their extreme value in daily use. Accidental damage is almost unheard of, so that the appliances remain operational even after long periods of use.

Their robustness and favourable power consumption combined with simple handling and complete standard equipment make them superior. Special requests can be catered for as extras. Trust the original, don't make any compromises if your priority is to be able to dry reliably and permanently.

Technical parameters
AIRDRY 170 T 250 T 350 T 750 T
Max. Water withdrawal / l 170 240 350 750
at +30°C / 70% r.F. / l 103,7 146,4 213,6 457,7
at +20°C / 70% r.F. / l 70,3 99,8 145,6 312,0
at + 8°C / 70% r.F. / l 31,2 44,1 64,3 137,8
Compressor PS / kW 3,1 / 2,3 3,7 / 2,7 6,3 / 4,6 11,1 / 8,2
Voltage V/Hz 400/50-60 400/50-60 400/50-60 400/50-60
Power consumption / h 2800 Watt 3500 Watt 5700 Watt 12350 Watt
Cooling capacity kcal h 6364 7568 12728 22677
Air output cbm / h 2000 2500 3800 7000
Work area °C 5 bis 40 5 bis 40 5 bis 40 5 bis 40
Dimensions: Height/depth/width mm 1610/410/620 1670/460/780 1700/540/1190 1945/730/1400
Net weight kg 95 140 280 420
