Low power consumption with maximum water extraction !
30 % energy saving !

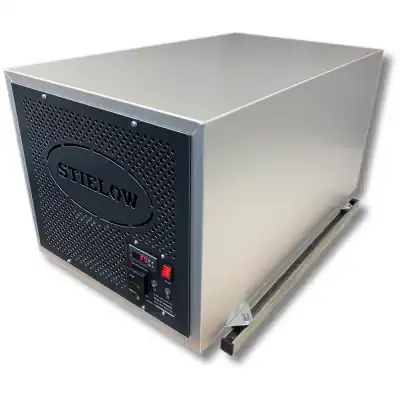

The STIELOW dehumidifiers AIRDRY T 50 D and T 100 D, unit are designed as console units for ceiling mounting. A wall bracket is optionally available. Alternatively, the AIRDRY 2 D is available as a mobile stationary unit or the TG 50 P from the HANDYDRY series as a universally transportable unit with large swivel castors.
No matter which design you choose: STIELOW dehumidifiers last longer than others and impress with their extreme value in daily operation, so that the appliances always remain operational even after long periods of use. Their robustness and favourable power consumption, combined with simple handling and complete equipment as standard, make them superior.
Standard equipment:
- Threaded drain connection ¾" for permanent water drainage
- Designed for ceiling mounting as standard
- State-of-the-art refrigerant
- Axial fan stepless
- frame-tec-composite
- Increased air flow rate
- Hot gas defrosting
- Fully automatic operation
- Operating hours counter
Optionen:
- Electricity consumption meter
- V2A-Housing
- Crane hook attached
- Bracket for wall mounting
- Air duct connections
- Sound-absorbing design „Armstrong“
- Aggregate sealing
- Power connection cable up to 30 m
- External humidity sensor
- Dew point controller internal/external
- Separate frost monitor
- Special paint finish according to RAL
- Special paint finish on request
- Tropical version (over 30 °C)
- Condensate water pump 1.5 - 6.0 m delivery head
- Built-in fault indicator
- Data bus remote monitoring
- Protection class IP 54
Special requests can be catered for within the scope of the extras.
Trust the original, don't make any compromises if your
priority is to be able to dry reliably and permanently.
Technical parameters
| AIRDRY Aggregate | T 50 D | T 100 D |
|---|---|---|
| Max. water withdrawal / day | 67,82 l | 135,74 l |
| at +30°C / 70% r.F. | 47,96 l | 80,56 l |
| at +20°C / 70% r.F. | 36,26 l | 54,54 l |
| at + 8°C / 70% r.F. | 14,10 l | 23,93 l |
| Compressor PS / kW | 0,5 / 0,37 | 1 / 0,73 |
| Voltage V/Hz | 230/50 | 230/50 |
| Power consumption / h | 580 Watt | 1080 Watt |
| Cooling capacity kcal h | 2000 | 3200 |
| Air output cbm / h | 1100 | 1800 |
| Work area °C | *-10 bis 40 | *-10 bis 40 |
| Dimensions: Height/depth/width | 440 / 710 / 470 mm | 510 / 890 / 600 mm |
| Net weight kg | 56 | 67 |
*separate heating of bath and drain required
